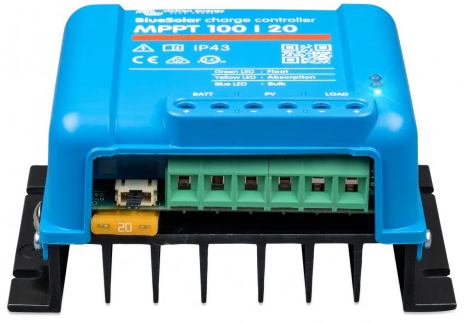

Charge controller Victron Energy BlueSolar MPPT 100/20 (up to 48V) Retail
Charge controller Victron Energy BlueSolar MPPT 100/20 (up to 48V) Retail
A solar charger collects energy from solar panels and stores it in batteries. Using the latest and fastest technology, BlueSolar maximizes solar energy efficiency by delivering a smart charge in the shortest possible time. BlueSolar keeps batteries in good condition, increasing their lifespan.
MPPT: Ultra-fast maximum power point tracking
By continuously monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that the panels' available power is utilized to the fullest extent possible for storage in batteries. The benefits are especially obvious under partly cloudy skies, when light levels fluctuate frequently.
Remote monitoring and control
Remotely control and monitor the advanced features of your BlueSolar MPPT charger by connecting a Bluetooth dongle and connecting it to smartphone or other device via VictronConnect. If your installation is connected to the Internet using a GX device, the Victron Remote Management (VRM) portal provides access to the full power of your MPPT anytime, anywhere; Access to VictronConnect and VRM is free. For remote installations - even if there is no Internet connection nearby - you can still monitor your MPPT by connecting the GlobalLink 520.
Output loads
The intelligent Output Load function prevents the risk of battery damage due to complete discharge. You can set the voltage at which BlueSolar will turn off the load - thus preventing the battery from draining completely. And one more clever feature: BlueSolar will try to ensure that the battery is fully charged throughout the day. If this cannot be done - for example, in bad weather - the device will increase the load disconnect voltage day after day until a full recharge is completed batteries throughout the day. We call this feature BatteryLife because it keeps your batteries healthy, extending their lifespan.
MAIN CHARACTERISTICS
Battery voltage (automatic selection): 12/24/48 V.
Rated charge current: 20A
Rated photovoltaic power, 12 V 1a,b): 290 W
Rated photovoltaic power, 24 V 1a,b): 580 W
Rated photovoltaic power, 48 V 1a,b): 1160 W
Max. Short circuit current of photovoltaic battery 2): 20A
Automatic load shedding: Yes
Max. Photovoltaic battery open circuit voltage: 100 V
Peak efficiency: 98%
Self-consumption - load at: 26/20/19 mA
Self-consumption - no-load load: 10/8/7 mA
Charge voltage "absorption": 14.4 V / 28.8 V / 57.6 V (adjustable)
Floating charge voltage: 13.8 V / 27.6 V / 55.2 V (adjustable)
Charging algorithm: multi-stage adaptive
Temperature compensation: -16 mV/°C resp. -32 mV/°С
Max. DC load current: 20A/20A/1A
Low voltage load cut-off: 11.1V/22.2V/44.4V or 11.8V/23.6V/47.2V or battery life algorithm
Low voltage load reconnection: 13.1V/26.2V/52.4V or 14V/28V/56V or battery life algorithm
Protection: Output short circuit/Over temperature
Operating temperature: -30 to +60°C (full rated power up to 40°C)
Humidity: 95%, non-condensing.
Data Port: VE.Direct
FRAME
Colour: Blue (RAL 5012)
Power terminals: 6 mm² / AWG10
Protection category: IP43 (electronic components), IP22 (connection area)
Weight: 0.65 kg
Dimensions (H x W x D): 100 x 131 x 60 mm.
STANDARDS
Safety: EN/IEC 62109-1, UL 1741, CSA C22.2.
1a) If more solar power is connected, the controller will limit the input power.
1b) To start the controller, the photoelectric voltage must exceed Vbat + 5V.
After this, the minimum photovoltaic voltage is Vbat + 1 V.
2) Photovoltaic battery with higher short circuit current may damage the controller.
