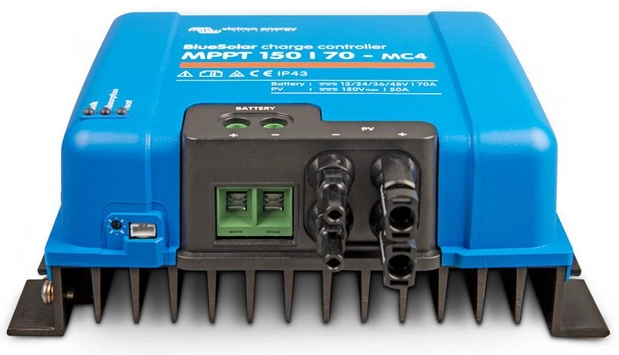

Charge controller Victron Energy BlueSolar MPPT 150/70
Charge controller Victron Energy BlueSolar MPPT 150/70
A solar charger collects energy from solar panels and stores it in batteries. Using the latest and fastest technology, BlueSolar maximizes solar energy efficiency by delivering a smart charge in the shortest possible time. BlueSolar keeps batteries in good condition, increasing their lifespan.
MPPT: Ultra-fast maximum power point tracking
By continuously monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that the panels' available power is utilized to the fullest extent possible for storage in batteries. The benefits are especially obvious under partly cloudy skies, when light levels fluctuate frequently.
Remote monitoring and control
Remotely control and monitor the advanced features of your BlueSolar MPPT charger by plugging in a Bluetooth dongle and connecting it to your smartphone or other device via VictronConnect. If your installation is connected to the Internet using a GX device, the Victron Remote Management (VRM) portal provides access to the full power of your MPPT anytime, anywhere; Access to VictronConnect and VRM is free. For remote installations - even if there is no Internet connection nearby - you can still monitor your MPPT by connecting the GlobalLink 520.
CHARACTERISTICS
Battery voltage: 12 / 24 / 48 V auto select (36 V can be selected by software)
Nominal charge current: 70 A*
Rated photovoltaic power, 12 V 1a,b): 1000 W
Rated photovoltaic power, 24 V 1a,b): 2000 W
Rated photovoltaic power, 48 V 1a,b): 4000 W
Max. photoelectric short-circuit current 2): 50 A*
Maximum open PV voltage:
150V absolute maximum in the coldest conditions
145V maximum at startup and running
Maximum efficiency: 98 %
Autonomous consumption: 10 mA*
Absorption Charge Voltage: Default Setting 14.4 / 28.8 / 43.2 / 57.6V (customizable)
Float Charge Voltage: Default Setting 13.8 / 27.6 / 41.4 / 55.2V (customizable)
Charging algorithm: multi-stage adaptive
Temperature compensation: -16 mV / -32 mV / -64 mV / °C
Protection: Photoelectric reverse polarity / Output short
short circuit / overheating
Operating temperature: -30 to +60 °C (full rated power up to 40 °C)
Humidity: 95%, non-condensing
Data port and remote switch: VE.Direct
Parallel operation: Yes (not synchronized)
FRAME
Colour: Blue (RAL 5012)
Photovoltaic terminals 3): 35mm²/AWG2 (Tr models),
Two sets of plugs: MC4 (MC4 models)
Battery terminals: 35mm²/AWG2
Protection category: IP43 (electronic components), IP22 (connection area)
Weight: 3 kg
Dimensions (H x W x D) in mm: Tr models: 185 x 250 x 95 MC4 models: 215 x 250 x 95
STANDARDS
Safety: EN/IEC 62109-1, UL 1741, CSA C22.2
1a) When connecting PV power with higher power, the controller will limit the input power.
1b) The photovoltaic voltage must exceed Vbat + 5V for the controller to start working.
Then the minimum PV voltage is Vbat + 1V.
2) Photovoltaic array with higher short circuit current may damage the controller.
3) MC4 models: paralleling rows of solar panels may require several pairs of splitters.
Maximum current per MC4 connector: 30 A (MC4 connectors are connected in parallel to one MPPT tracker)
