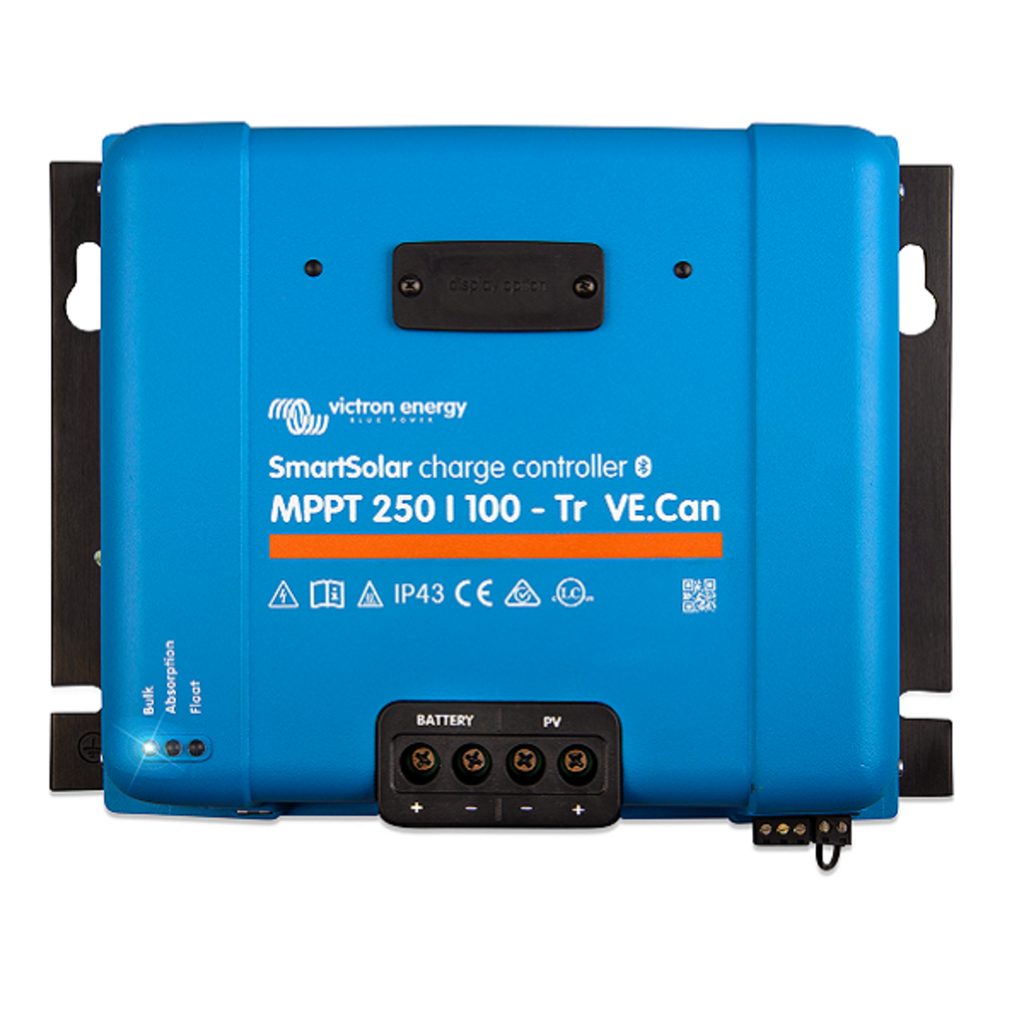

Charge controller Victron Energy BlueSolar MPPT 250/100-Tr VE.Can

Charge controller Victron Energy BlueSolar MPPT 250/100-Tr VE.Can
A solar charger collects energy from solar panels and stores it in batteries. Using the latest and fastest technology, BlueSolar maximizes solar energy efficiency by delivering a smart charge in the shortest possible time. BlueSolar keeps batteries in good condition, increasing their lifespan.

MPPT: Ultra-fast maximum power point tracking
By continuously monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that the panels' available power is utilized to the fullest extent possible for storage in batteries. The benefits are especially obvious under partly cloudy skies, when light levels fluctuate frequently.

Remote monitoring and control
Remotely control and monitor the advanced features of your BlueSolar MPPT charger by connecting a Bluetooth dongle and connecting it to your smartphone or to another device via VictronConnect. If your installation is connected to the Internet using a GX device, the Victron Remote Management (VRM) portal provides access to the full power of your MPPT anytime, anywhere; Access to VictronConnect and VRM is free. For remote installations - even if there is no Internet connection nearby - you can still monitor your MPPT by connecting the GlobalLink 520.

MAIN CHARACTERISTICS
Battery voltage: 12 / 24 / 48 V auto select (36 V can be selected by software)
Rated charge current: 100 A*
Rated photovoltaic power, 12 V 1a,b): 1450 W
Rated photovoltaic power, 24 V 1a,b): 2900 W
Rated photovoltaic power, 36 V 1a,b): 4350 W
Rated photovoltaic power, 48 V 1a,b): 5800 W
Max. photoelectric short-circuit current 2): 70 A*
Maximum open PV voltage:
150 V vent. 250 V absolute maximum at most cold conditions
145 V vent. 245 V maximum at startup and operation
Maximum efficiency: 99%
Autonomous consumption: Below 35 mA @ 12 V / 20 mA @ 48 V
Absorption charge voltage:
Default setting 14.4 / 28.8 / 43.2 / 57.6V (Adjustable by: Rotary Switch, Display, VE.Direct or Bluetooth)
Float Charge Voltage: Default Setting 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable: Rotary Switch, Display, VE.Direct or Bluetooth)
Equalize charge voltage: Default setting 16.2V / 32.4V / 48.6V / 64.8V (adjustable)
Charging algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or custom
Temperature compensation: -16 mV / -32 mV / -64 mV / °C
Protection: Photoelectric reverse polarity / Output short circuit / Over temperature
Operating temperature: -30 to +60 °C (full rated power up to 40 °C)
Humidity: 95%, non-condensing
Maximum altitude: 5000 m (full rated power up to 2000 m)
Ambient conditions: Indoors, no air conditioning
Pollution level: PD3
Data Port: VE.Direct and VE.Can
External switch: Yes (2-pole connector)
Programmable Relay: DPST AC Rating: 240 VAC / 4 A DC Rating: 4 A to 35 VDC, 1 A to 60 VDC
Parallel operation: Yes, parallel synchronized operation with VE.Can (max. Up to 25 devices)

ENCLOSURE
Colour: Blue (RAL 5012)
Photovoltaic terminals: 35mm²/AWG2
Battery terminals: 35mm²/AWG2
Protection category: IP43 (electronic components), IP22 (connection area)
Weight: 4.5 kg
Dimensions (H x W x D): Tr models: 216 x 295 x 103 mm

STANDARDS
Safety: EN/IEC 62109-1, UL 1741, CSA C22.2
1a) When connecting PV power with higher power, the controller will limit the input power.
1b) The photovoltaic voltage must exceed the value Vbat + 5 V in order to the controller started working. Then the minimum
the photoelectric voltage will be Vbat + 1 V.
2) Photovoltaic array with higher short circuit current may damage the controller.
