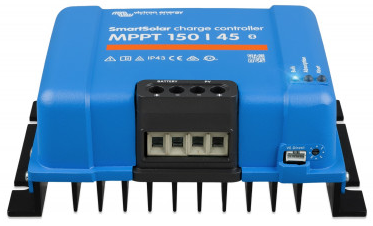

Charge controller Victron Energy SmartSolar MPPT 150/45 (45A, 12/24/48V)

Charge controller Victron Energy SmartSolar MPPT 150/45 (45A, 12/24/48V)
A solar charger collects energy from solar panels and stores it in batteries. Using the latest and fastest technology, SmartSolar maximizes solar energy efficiency by delivering a smart charge in the shortest possible time. SmartSolar keeps batteries in good condition, increasing their lifespan.

The SmartSolar charge controller will charge even a very discharged battery. It can operate with battery voltages as low as 0 volts, provided the cells are not permanently sulfated or otherwise damaged.

MPPT: Ultra-fast maximum power point tracking
By continuously monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that the panels' available power is utilized to the fullest extent possible for storage in batteries. The benefits are especially obvious in partly cloudy environments. sky when the light changes frequently.

Remote monitoring and control
Remotely monitor and control a wide range of features on your SmartSolar MPPT charger with built-in Bluetooth by connecting it to your smartphone or other device via VictronConnect. If your installation is connected to the Internet using a GX device, the Victron Remote Management (VRM) portal provides access to the full power of your MPPT anytime, anywhere; Access to VictronConnect and VRM is free. For remote installations - even if there is no Internet connection nearby - you can still monitor your MPPT by connecting the GlobalLink 520.

MAIN CHARACTERISTICS
Battery voltage: 12 / 24 / 48 V Automatic selection (36 V can be selected by software)
Rated charge current: 45 A
Rated PV power 1a, b): 35 A 12 V 500 W / 24 V: 1000 W / 36 V: 1500 W / 48 V: 2000 W
45 A 12 V 650 W / 24 V: 1300 W / 36 V: 1950 W / 48 V: 2600 W
Max. Current short circuit PV 2): 50 A
Maximum open PV voltage: 150V absolute maximum in the coldest conditions
145V maximum at startup and running
Maximum efficiency: 98%
Autonomous consumption: 12 V 20 mA 24 V: 15 mA 48 V: 10 mA
Absorption charge voltage: Default setting 14.4 / 28.8 / 43.2 / 57.6V (customizable)
Float Charge Voltage: Default setting 13.8 / 27.6 / 41.4 / 55.2V (customizable)
Charging algorithm: Multi-stage adaptive (eight pre-programmed algorithms)
Temperature compensation: -16 mV / -32 mV / -64 mV / °C
Protection:
Wrong PV polarity
Output short circuit
Overheat
Operating temperature: -30°C to +60°C (full rated power up to 40°C)
Humidity: 95%, non-condensing
Data Port: VE.Direct

FRAME
Colour: Blue (RAL 5012)
Power terminals: 16 mm² / AWG6
Protection category: IP43 (electronic components) IP22 (connection area)
Weight: 1.25 kg
Dimensions (h x w x d): 130 x 186 x 70 mm

STANDARDS
Safety: EN/IEC 62109-1, UL 1741, CSA C22.2

SAVED TRENDS
Stored data: Battery voltage, current and temperature, as well as load output current, PV voltage and PV battery current.
Number of days trend data is stored: 46
1a) When connecting PV power supply with higher power, the controller will limit the input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start working.
Then the minimum PV voltage is Vbat + 1V.
2) PV with higher short circuit current may damage the controller.
