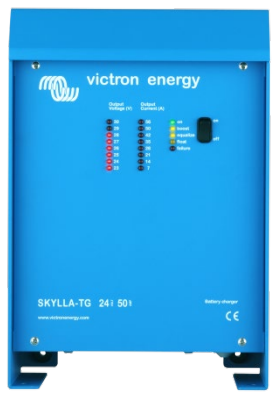

Charger Victron Energy Skylla-TG 24/50 TG
Charger Skylla-TG
Product description Victron energy Skylla-TG 24/50
Peculiarities:
Excellent Chargers for Any Battery Type: Charging voltage can be precisely adjusted to suit any sealed or unsealed battery system. In particular, sealed, maintenance-free batteries must be charged to ensure long service life. Increased overvoltage will cause excess gas and release of the sealed battery. The battery dries out and fails.
Suitable for AC and DC power (AC DC and DC DC): Except for three-phase input models, chargers also accept DC power.
Controlled Charging: Each TG charger has a microprocessor that precisely controls charging in three stages. The charging process follows the IUoUo characteristic and charges faster than other processes.
Using TG chargers as a power source: the result is completely With its stabilized output voltage, the TG charger can be used as a power source when batteries or large buffer capacitors are not available.
Two outputs for charging two batteries (24 V models only): TG chargers have 2 isolated outputs. The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up the starter battery.
To increase battery life: temperature compensation Each Skylla TG charger comes with a battery temperature sensor. When connected, the charging voltage automatically decreases as the battery temperature increases. This feature is especially recommended for sealed batteries, which may otherwise be overcharged and dried out due to ventilation.
Battery voltage. To compensate for voltage losses due to cable resistance, TG chargers are equipped with a voltage measuring device so that The battery always receives the correct charging voltage.
Characteristics:
Input Voltage (VAC): 230
Input Voltage Range (VAC): 185,264
Input voltage range (VDC): 180 400
Frequency (Hz): 45 65
Power factor: 1
Charge Absorption (VDC): 28.5
Float Discharge Voltage (V DC): 26.5
Charge your current home. (A)(2): 30/50
Starter charging battery. (A): 4
Charge characteristic: UoUo (three steps)
Battery capacity (Ah): 150,500
Temperature sensor: √
Can be used as a power source: √
Remote alarm: potential free contacts 60V/1A (1x NO and 1x NC
Forced cooling: √
Defense (1): a, b, c, d
Working temperature. range: 40 to +50 °C (40 to 122 °F)
Humidity (non-condensing): max. 95%
Material: aluminum
Battery connection: M8 pins
Connection 230 V AC: screw terminal 2.5 mm² (AWG 6)
Protection category: IP 21
Weight kg (lbs): 5.5 (12.1)
Dimensions hxwxd in mm ((hxwxd in inches): 365x250x147 (14.4x9.9x5.8)
