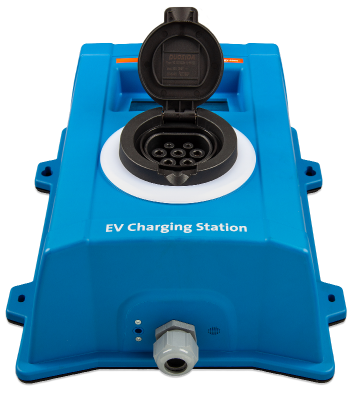

Charging station for electric vehicles Victron Energy 22kW

Powerful AC Charger -22kW The maximum power that an EV charging station can deliver is 22kW in 3-phase mode or 7.3kW per phase. It can also be used in single-phase installations.

Wi-Fi: 802.11 b/g/n for setup and monitoring For both initial setup and monitoring, the internal Wi-Fi module can be configured in access point mode or station mode.

Touch Screen 4.3 inch touch screen for monitoring and control.

Light Ring Fully programmable light ring around the charging port to quickly determine device status. It can be programmed in the web interface to display different lighting effects depending on the current state (unplugged, charging, charging, etc.).

Automatic Mode To ensure maximum efficiency of the photovoltaic system, the electric vehicle charging station has an automatic mode that detects when available excess power, and uses only that power to charge the vehicle.

Manual mode Adjustable output current 6-32A

Real-time display options - Color Control GX or other GX devices: See Venus documents on our website. - On the device web page - On the VRM portal

There are 2 operating modes: manual and automatic.
