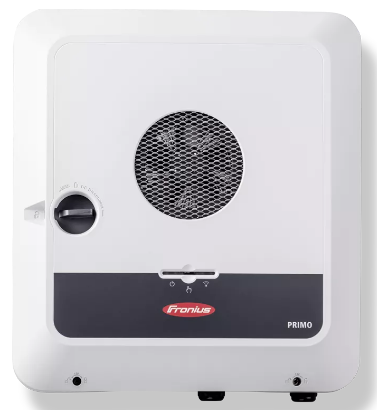

Hybrid inverter Fronius Primo GEN24 4.6

INVERTERS FOR PRIVATE PV SYSTEMS WITH BUILT-IN BASIC BACKUP FUNCTION
Our Fronius GEN24 single-phase inverter is the heart of private photovoltaic systems.
Fronius GEN24 is equipped with PV Point, a built-in basic power backup feature that provides backup power to connected devices via a protected outlet (while the sun is shining).

Fronius Primo GEN24 boasts a wide range of functions that ensure a sustainable, independent energy supply. Discover key opportunities for installers and their customers:

/ Intelligent energy management
/ Active cooling technology for longer service life
/ Flexible and fast installation
/ Easy integration and management of Fronius or third-party components thanks to open interfaces.


TECHNICAL DATA

INPUT DATA
Number of MPP trackers: 2
Max. input current (Idc max): 22/12 A
Max. Short circuit current, module array*: 36/19 A
Input range DC voltage (Udc min – Udc max): 65–600 V
Start supply voltage (Udc start): 80 V
Nominal input voltage (Udc,r): 400 V
MPP voltage range (Umpp min - Umpp max): 230 - 530 V
Useful MPP voltage range: 65-530V.
Number of DC connections: 2+2
Max. Photovoltaic generator power (Pdc max): 6.9 kWp.

OUTPUT
Rated AC power (Pac,r): 4600 W
Max. output power (Pac max): 4600 VA
Max. network power consumption: 4600 VA
Max. AC output current: 27.5A
Mains connection (Uac,r): 1~ NPE 220/230 V
AC voltage range (Umin – Umax): 155–270 V
Frequency range (fmin – fmax): 45–65 Hz
Total Harmonic Distortion: <3% @Pnom (230/400VAC, 50Hz)
Power factor (cos φac,r): 0.8 - 1 ind./camp,
Backup power 1~NPE 220 V / 230 V
Nom. AC-Ausgangsstrom (220 VAC): 20.9 A
Nom. AC-Ausgangsstrom (230 VAC): 20 A

ARE COMMON DATA
Width: 474 mm
Height: 530 mm
Depth: 165 mm
Weight: 15.38 kg
Weight incl. packaging: 19 kg
Protection degree: IP66.
Protection class: 1
Overvoltage category (DC/AC): 2/3
Night time consumption: < 10 W
Inverter design: Transformerless
Cooling: active cooling
Installation: Indoor and outdoor installation.
Ambient temperature range: -40°C - +60°C
Permissible humidity: 0–100%
Max. height: 4000
DC-PV connection technology: 4x DC+ and 4x DC- plug-in spring terminals 2.5–10 mm²
AC connection technology: 3-pole AC spring terminals, 2.5-10mm².
3-pole spring terminals for backup power supply 1.5–10 mm²
2x PE screw terminals 2.5–16 mm² and 3x 2.5–10 mm²
Certifications and Standards: IEC 62109, IEC 62909, AS/NZS 4777.2, CEI 0-21, ABNT BNR 16149 and 16150, IEC 62116, IEC 61727, G98/G994)
PV Point backup power features: Noise level 42 dB(A)
Interference class: B

EFFICIENCY
Max. efficiency (PV - network): 97.6%
European Efficiency (ηEU): 96.2 / 97.2 / 96.6 (230 VDC / 400 VDC / 530 VDC)
MPP adaptation efficiency: 99.9

PROTECTIVE DEVICES
DC insulation measurement: Yes
Overload behavior: operating point shift, power limitation.
DC disconnect: Yes
DC Reverse Polarity Protection: Yes

INTERFACES
WLAN/2x Ethernet LAN: Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
6 digital inputs/outputs + 6 digital inputs: interface for ripple control receiver, energy management
Emergency stop (WSD): Yes
Data logger and web server: included.
2x RS485: Modbus RTU SunSpec (3rd party supplier) / Fronius Smart Meter, battery, Fronius Ohmpilot

OUTPUT PV POINT
Maximum continuous output power: 3000 VA
Nom. output current (Iac max): 13 A
Network connection 1~NPE: 220 V / 230 V
Frequency: 50Hz/60Hz
Max. PV-Point switching time: 23 s
Frequency in backup mode: 53 Hz

TECHNOLOGIES

FRONIUS AP
This is a program that allows the installer to update the Fronius product via Solar.web without any additional hardware. Fronius UP offers unique, new and innovative opportunities to expand Fronius products with new functions according to customer needs at any time. This ensures maximum flexibility and future reliability.

INTEGRATED DATA COMMUNICATION
We are the first inverter manufacturer to offer a data communications package with fully integrated data logging, WLAN, Ethernet, energy management, web server and a range of interfaces. The inverter connects to the Internet via a network cable or WLAN - without additional cables - and gives you a perfect overview of the operation of the photovoltaic system. Connection to third-party components is carried out via interfaces such as Modbus TCP SunSpec, Modbus RTU SunSpec or Fronius Solar API (JSON). The open interfaces can also be used in parallel with Fronius Solar.web.

DYNAMIC PEAK MANAGER
Dynamic Peak Manager is a new MPP tracking algorithm that dynamically adapts its behavior to find the optimal operating point. Its special feature is that Dynamic Peak Manager automatically checks the entire characteristic curve on a regular basis and finds the global maximum power point (GMPP) even in the penumbra.

MULTI-THREADING TECHNOLOGY
Using Multi Flow technology, parallel flows of DC and AC energy are possible. On the one hand, this makes it possible to obtain energy from the modules and a battery, which at the same time should be available for home use. However, it is also possible to simultaneously supply energy from the modules to the battery and the intra-house network. Moreover, the battery can be charged not only from the DC side, but also from the AC side (for example, from existing photovoltaic systems or other energy sources such as a wind turbine). This means that the inverter is also suitable for retrofitting with an AC connection. The inverter manages these energy flows in such a way that the greatest possible degree of self-sufficiency is achieved.

SUPERFLEX DESIGN
Fronius SuperFlex Design is an ingenious combination of technical features that make designing your photovoltaic system not only extremely simple, but also incredibly flexible. Key to the performance of the SuperFlex design are the two MPP trackers, as well as the high system voltage and wide DC input voltage range. Each DC input and therefore each MPP tracker is capable of delivering the inverter's full rated output power. Whether the inverter has to cope with different roof orientations, the shading of one or two strings or the use of residual modules: the Fronius inverter with With its integrated design, SuperFlex will satisfy every conceivable PV system planning scenario using only one inverter model.

FULL BACKUP
Thanks to the full backup option, the entire house, i.e. both single-phase and three-phase devices, can be supplied with electricity in the event of a power outage.

PV POINT
Built-in core backup—the outlet that receives power during a power outage—ensures that critical loads can continue operating in the event of a power failure.

ACTIVE COOLING
Active cooling technology is based on the use of one or more fans, which not only avoid overheating, but also regulate air circulation inside the inverter, thereby maintaining a low temperature of the power electronics. This has a positive effect on the service life of the devices, optimizes product yield and reduces costs. Fronius includes active cooling standard equipment for all devices.
