Hybrid inverter Victron Energy MultiPlus 12/800/35

Hybrid inverter Victron Energy MultiPlus 12/800/35
The new MultiPlus style is intended to replace the previous MultiPlus Compact range. It's a powerful sine wave inverter, a sophisticated charger with adaptive charging technology and a high-speed AC backup switch in one compact package.

Uninterruptible AC Power
In the event of a network failure or loss of power from the shore or generator, the inverter as part of the Multi is automatically activated and takes over power for the connected consumers. This happens so quickly (less than 20 milliseconds) that computers and other electronic equipment continue to operate without interruption.

Remote monitoring and control
When connected to a GX device (such as a Cerbo GX), you can monitor and control your Multi and system or systems locally (LAN) or remotely over the Internet from anywhere in the world using the free VRM app and free VRM Portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There's no limit to the level of control you can control, from customizing your Multi to automatically starting your backup generator and more..."

PowerControl/PowerAssist: Yes
Three-phase and parallel operation: Yes
Transfer switch: 16 A

INVERTER
Input voltage range: 9.5-17V 19-33V 38-66V
Output: Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0.1% (1)
Continued output power at 25°C(3): 800 VA
Continued output power at 25°C: 700 W
Continued output power at 40°C: 650 W
Continued output power at 65°C: 400 W
Peak power: 1600 W
Maximum efficiency: 92/93/94%
No load power: 7/7/8 W
Power at no load in search mode: 2/2/3 W

CHARGER
AC Input: Input voltage range: 187-265 VAC. Input frequency: 45-65 Hz.
Charge voltage "absorption": 14.4/28.8/57.6 V
Floating charge voltage: 13.8/27.6/55.2 V
Storage mode: 13.2/26.4/52.8V
Home battery charging current (4): 20/10/6 A 35/16/9 A 50/25/13 A 70/40/20 A 80/50/25 A
Starter battery charge current: 1A.
Battery temperature sensor: Yes

GENERAL
Programmable relay (5): Yes
Defense (2): a – d

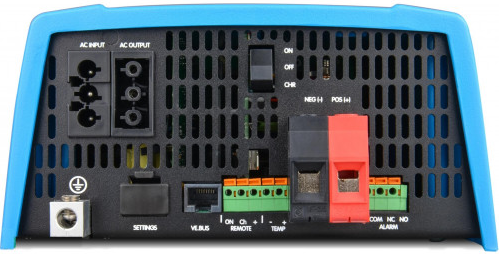

VE.Bus communication port: for parallel and three-phase operation, remote monitoring and system integration (RJ45 splitter ASS030065510 required for 500/800/1200 VA models)
Remote on-off: ON/OFF/Charger only
DIP switches: Yes(6)
Internal DC fuse: 150/80/40A
General characteristics: Operating temperature. range: -40 to +65°C (fan cooling) Humidity (non-condensing): max. 95%

FRAME
General characteristics: Material and color: Steel/ABS (blue RAL 5012). Protection category: IP 21.
Battery connection: 25/16/10 mm²
230 VAC connection: G-ST18i connector
Weight: 6.4 kg
Dimensions (H x W x D): 360 x 240 x 100 mm.

STANDARDS
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1.
Radiation immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6 - 3
Automotive Directive: ECE R10-5
1) Can be set to 60Hz and 240V.
2) Protection:
A. Output short circuit
b. Overload
V. Battery voltage is too high
d. Battery voltage is too low
e. Temperature too high
f. 230 VAC inverter output
d. Input voltage ripple is too high
3) Non-linear load, crest factor 3:1
4) Ambient temperature up to 25°C
5) Programmable relay that can be configured to:
general alarm, DC undervoltage or generator start/stop signal function
AC Rating: 230V/4A
DC Rating: 4A to 35VDC, 1A to 60VDC.
6) Remote control/battery voltage/frequency inverter/search mode
7) Battery voltage/search mode
