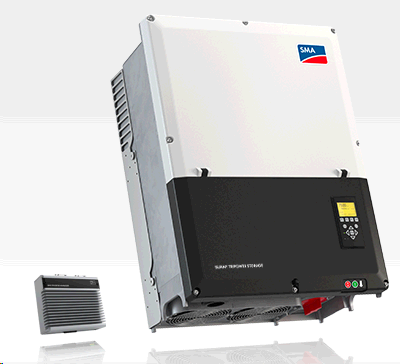

Inverter SMA Sunny Tripower Storage 60
SUNNY TRIPOWER STORAGE 60
The new Sunny Tripower Storage 60 is the ideal solution for commercial and industrial storage systems. Its modularity guarantees maximum flexibility up to the MW scale. Customers in the commercial and industrial segments benefit from extraordinary versatility at low costs. Be it peak load shedding, Tariff Time of Use (ToU), increasing self-consumption of PV for grid-tied systems, or reducing fuel costs in hybrid PV - Diesel applications - Sunny Tripower Storage offers various use cases and chances for new business models.
Technical Data SMA Inverter Manager
Voltage supply
Input voltage 9 to 36 Vdc
Power consumption < 20 W
General data
Dimensions (W/H/D) 160 / 125 / 49 mm (6.3 / 4.9 / 1.9 inches)
Weight 940 g (2 lbs)
Degree of protection IP21
Mounting DIN top-hat rails or wall mounting
Operating temperature range −40 °C to +85°C (−40° F to +185° F)
Relative humidity (non-condensing) 5% to 95%
Interfaces
PC user interface LCS tool
Sensor interface / protocol RS485 / Modbus RTU for Sunspec Alliance
Interface to inverter 1 Ethernet port (RJ45)
Interface for external network / protocol 1 Ethernet port (RJ45) / Modbus TCP, SunSpec Alliance
Certificates and approvals (more available upon request) UL 508, UL 60950-1, CSA C22.2 No. 60950-1-07, EN 60950-1, EN 55022
Class A, EN 61000-3-2 Class D, EN 61000-3-3, EN 61000-6-4, EN 55024,
FCC Part 15, Sub-part B Class A
Technical Data Sunny Tripower Storage 60
Battery connection (DC)
Max. DC charging power 60000 W
DC voltage range 575 V to1000 V
Max. DC current 140 A
Grid connection (AC)
Max. power 75000 W
Max. apparent AC power 75000 VA
Max. reactive power 75000 Var
Nominal AC voltage 3 / PE, 400 V, ±10%
AC voltage range 360 V to 530 V
AC power frequency / range 50 Hz / 44 Hz to 55 Hz
60 Hz / 54 Hz to 65 Hz
Rated power frequency / rated grid voltage 50 Hz / 400 V
Max. output current 109 A
Power factor at rated power / displacement power factor adjustable 1 / 0 overexcited to 0 underexcited
THD ≤ 1%
Feed-in phases/connection phases 3 / 3
Efficiency
Max. efficiency1) 98.8%
Protective devices
Input-side disconnection point ●
Ground monitoring fault / grid monitoring ● / ●
Integrated DC surge arrester / AC surge arrester Type II / type II + III (combined)
AC short-circuit current capability / galvanically isolated ● / —
All-pole sensitive residual-current monitoring unit ●
Protection class (as per IEC 62109-1) / overvoltage category (as per IEC 62109-1) I / AC: III; DC: II
General data
Dimensions (W/H/D) 570 / 740 / 306 mm (22.4 / 29.1 / 12 inches)
Weight 77 kg (170 lb)
Operating temperature range ‒25°C to +60°C (‒13°F to +140°F)
Noise emission, typical 58 dB(A)
Self-consumption (standby) < 3 W
Topology / cooling concept Transformerless / active
Degree of protection (according to IEC 60529 / UL 50E) IP65 / NEMA 3R
Climatic category (as per IEC 60721-3-4) 4K4H/4Z4/4B2/4S3/4M2/4C2
Max. permissible value for relative humidity (non-condensing) 95 %
Features/function/accessories
DC connection / AC connection Screw terminal / screw terminal
Display Graphical
Data interface SunSpec Modbus TCP (via external SMA Inverter Manager)
Applicable for Off-Grid systems / with SMA Fuel Save Controller - / ●
Warranty: 5 / 10 / 15 / 20 years ● / ○ / ○ / ○
Certificates and approvals (more available upon request) BDEW 2008, C10/11:2012³)
, EN 50438:20132), G59/3, IEC 62116, IEC 61727,
IEC 62109-1/-2, RfG compliant, UTE C 15-712-1, VDE 0126-1-1/A1,
VDE-AR-N 41053), VFR 2014
