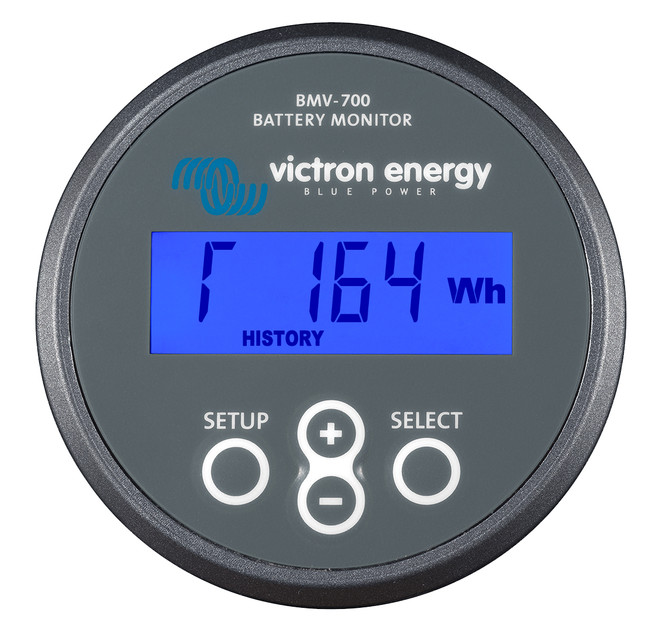

Victron Energy BMV-700 Battery Monitor

The BMV-700 is a family of cutting-edge, high-precision battery monitors. An important function of a battery monitor is to calculate the amp hours used and the state of charge of the battery. Ampere-hours consumed are calculated by integrating the currents flowing into and out of the battery.

The BMV-700 battery monitor has an advanced microprocessor control system, as well as high accuracy of measured data: battery voltage, charge/discharge current. In addition, the software includes complex calculation algorithms, such as the Peukert formula, to accurately determine the state of charge of the battery. BMV-700 stores a variety of battery performance and usage data and selectively displays battery voltage, current, Ah consumed, battery life. The BMV has a dry contact that can be used to automatically start and stop the generator, or signal an alarm.
Characteristics:
Supply voltage 6.5 – 95V
Current consumption (backlight off) < 4mA
Additional battery input voltage range no
Battery capacity 20 – 9999 Ah
Operating temperature range -20 +50°C
Additional battery voltage/temperature/midpoint measurement no
VE.Direct switch port
Dry contact 60V/1A (NO) can be inverted
Measurements (shunt 500A)
Voltage ±0.01V
Current ±0.01A
Ampere hours ±0.1 Ah
State of charge (0 – 100%) ± 0.1%
Operating time ± 1 min
Temperature (0 - 50°C) no
Current measurement accuracy ±0.4%
Voltage measurement accuracy ±0.3%
Installation and dimensions
Front panel 69 x 69
Diameter 52 mm
Total depth 31 mm
Weight (monitor / shunt), kg 0.07 / 0.033
ABS housing
Accessories
Shunt (included) 500 A / 50 mV2
Cable (included) 10 m UTP RJ12 connector and cable connecting to ‘+’ battery
Temperature sensor Option (ASS000100000)
